Hyperspectral Non-water Absorption Coefficient (a_nw)

IOP | PACE Data Matchups

The hyperspectral non-water absorption coefficient (a_nw, units: m^-1) is defined as the total absorption coefficient (a) less the seawater absorption coefficient (aw). Hyperspectral anw quantifies light that is absorbed by non-water constituent matter. Field measurements of hyperspectral a_nw are routinely measured spectrophotometrically following the IOCCG Ocean Optics & Biogeochemistry Protocols for Satellite Ocean Colour Sensor Validation. PACE OCI derives hyperspectral of anw using the GIOP-DC* algorithm as a_nw = a_ph + a_dg.

*We note that GIOP-DC is currently for oceanic waters.

Non-water Absorption Coefficient (a_nw) Click to download data: Select a_nw matchup statistics \| Select a_nw matchups
Wavelength	Mean Bias	Limits of Agreement		Linear Slope	Linear Intercept	Linear Correlation	Rank Correlation	uRMSE [View plot]	MedAE [View plot]	Matchup Plots
Wavelength	Mean Bias	Low	High	Linear Slope	Linear Intercept	Linear Correlation	Rank Correlation	uRMSE [View plot]	MedAE [View plot]	Matchup Plots

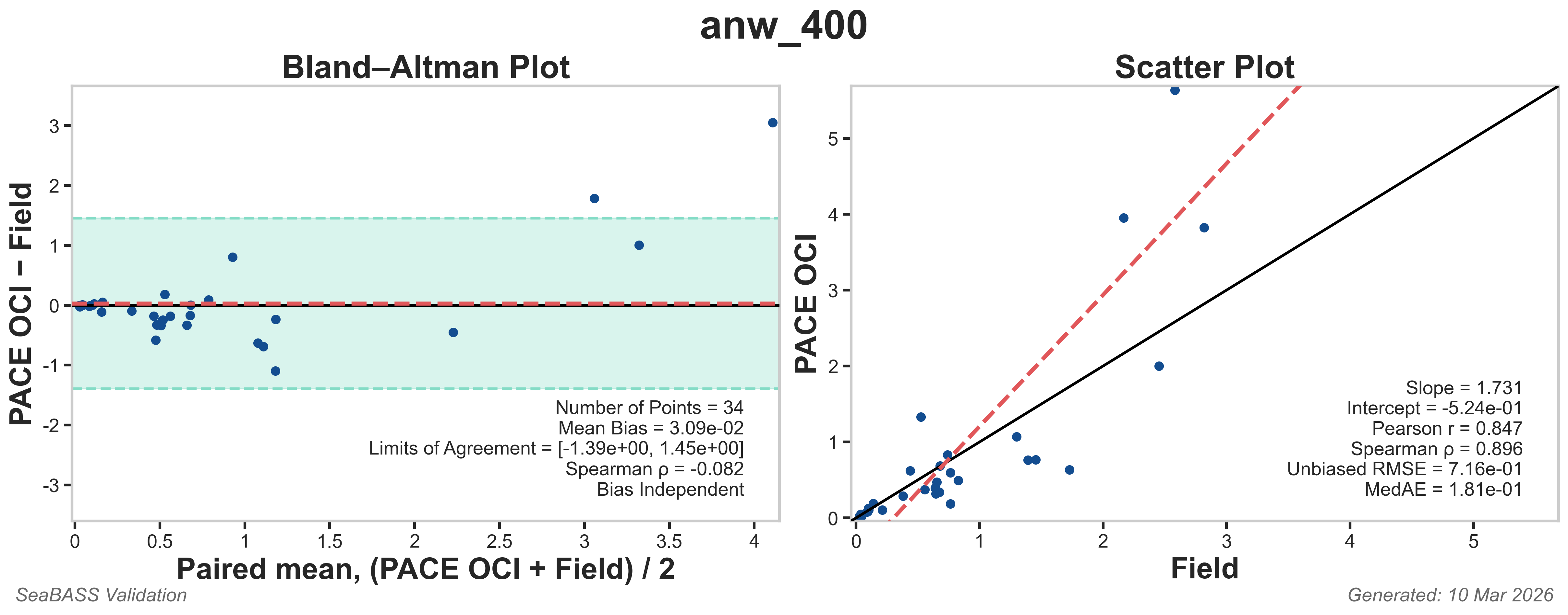

anw_400	-0.107	-1.13	0.919	1.13	-0.196	0.746	0.811	0.517	0.129	Click here

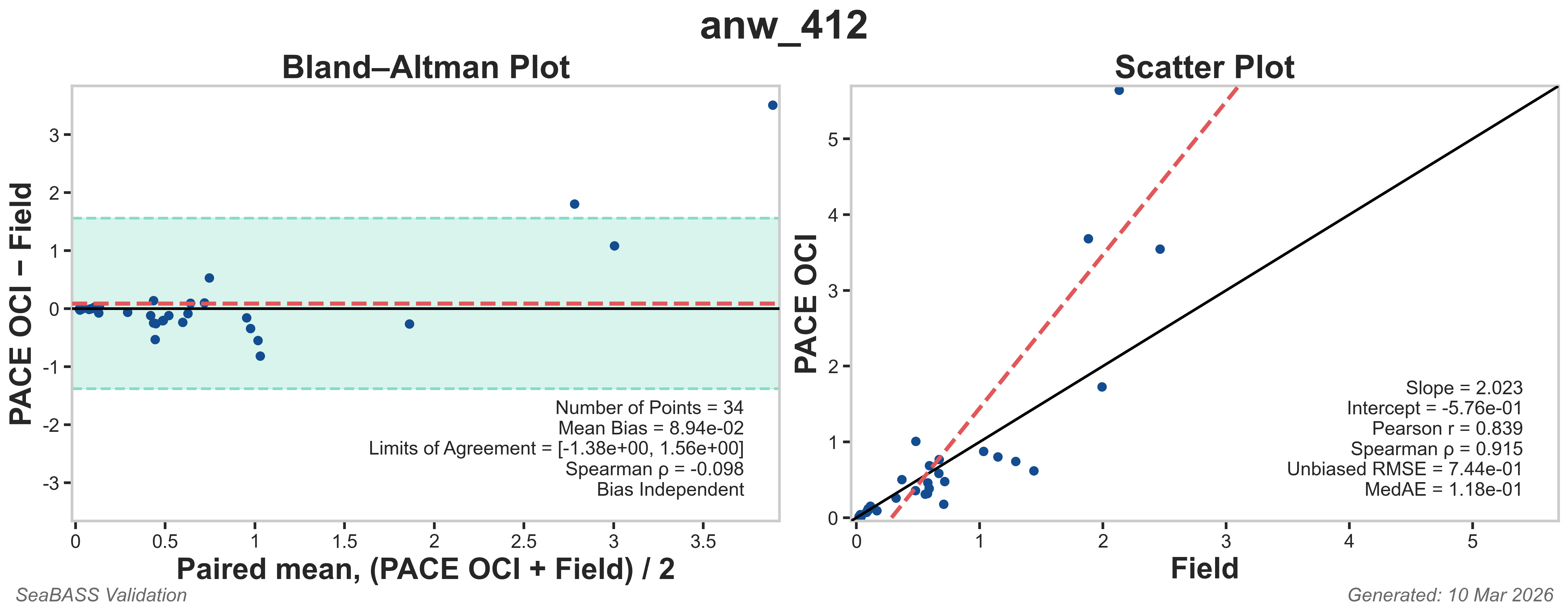

anw_412	-0.0653	-0.931	0.801	1.23	-0.204	0.766	0.826	0.437	0.106	Click here
anw_443	0.0253	-1.02	1.07	2.44	-0.561	0.683	0.84	0.525	0.041	Click here
anw_490	0.0265	-0.597	0.65	2.83	-0.368	0.678	0.898	0.315	0.0213	Click here
anw_510	0.00104	-0.336	0.338	1.95	-0.154	0.736	0.901	0.17	0.0191	Click here
anw_560	-0.0216	-999	-999	1.03	-0.0241	0.797	0.883	0.0524	0.0294	Click here

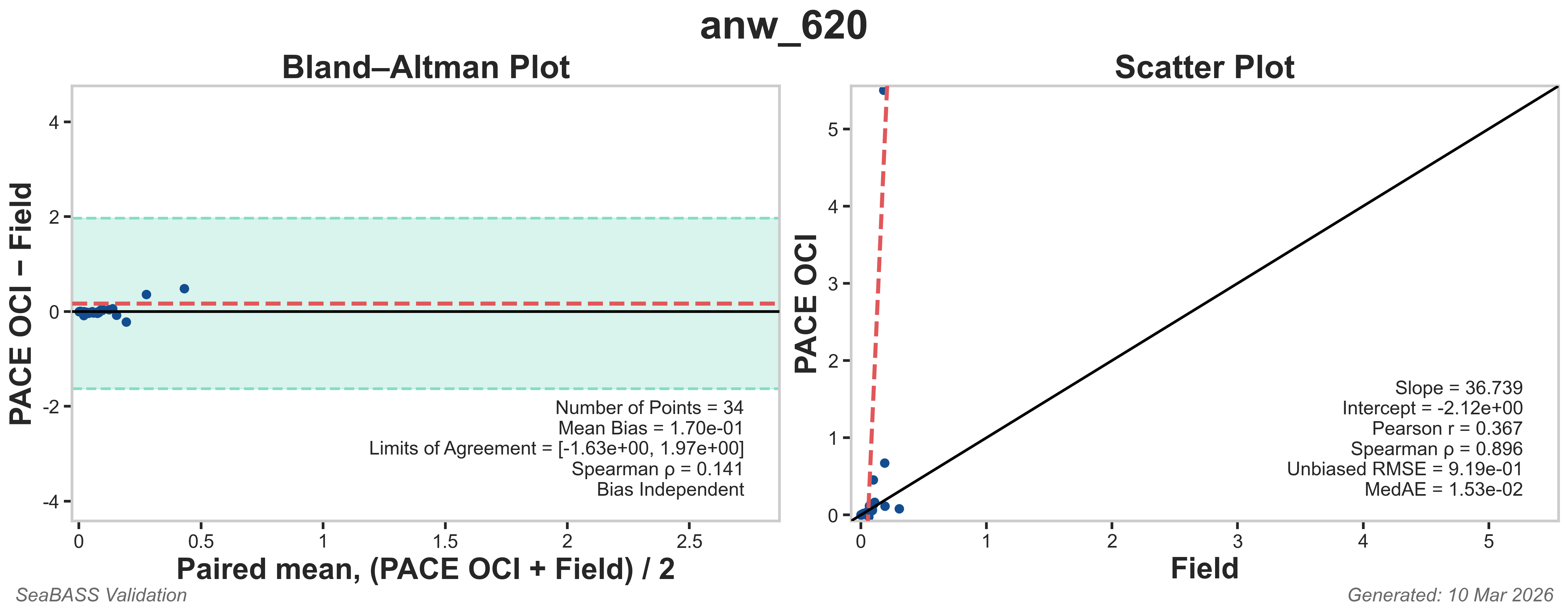

anw_620	-0.00124	-0.0967	0.0942	1.55	-0.0314	0.776	0.856	0.0481	0.00407	Click here

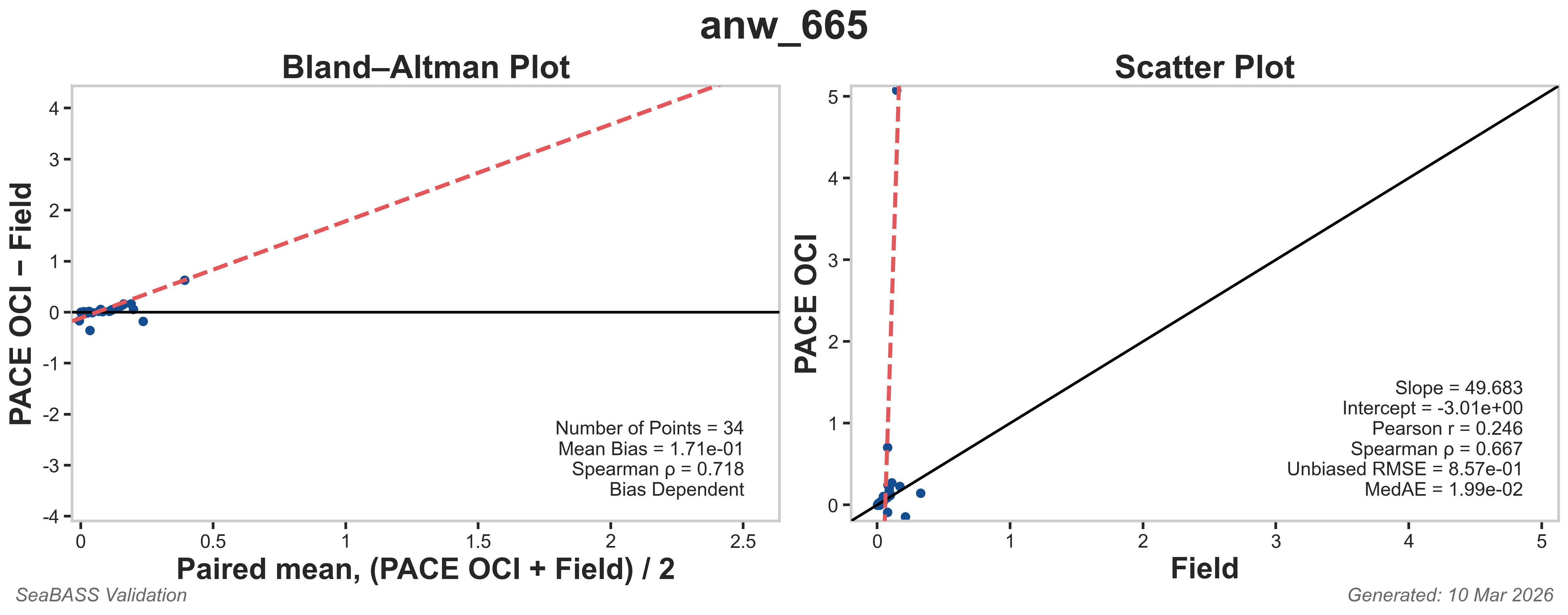

anw_665	0.0588	-999	-999	4.19	-0.139	0.718	0.847	0.136	0.0162	Click here

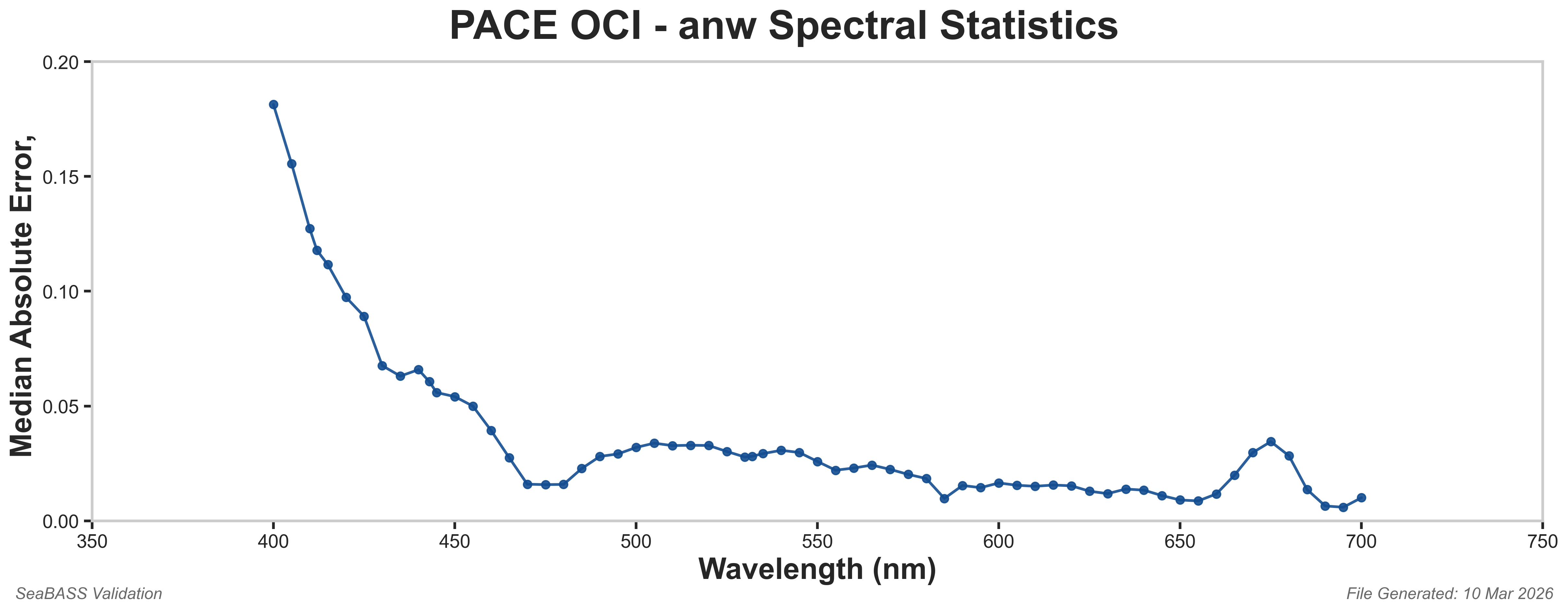

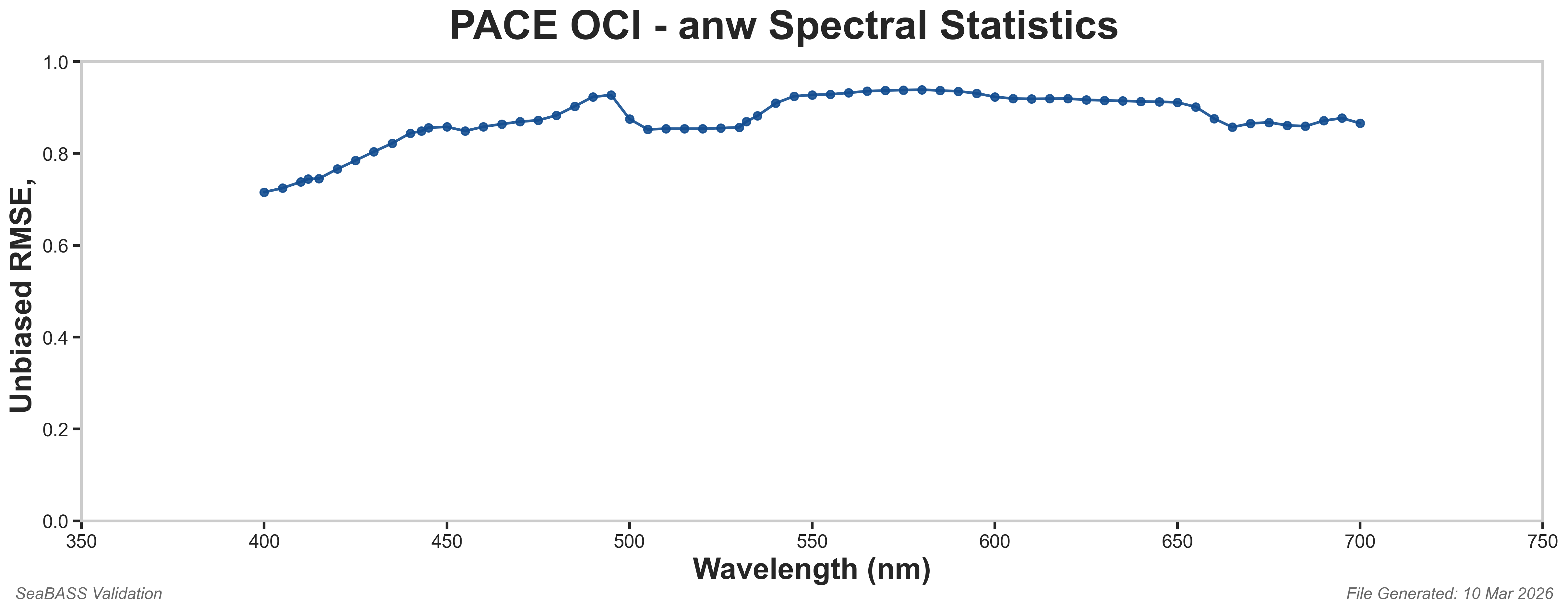

Disclaimer: The unbiased RMESs and Median Absolute Errors shown in the hyperspectral plots are preliminary. Visitors should expect updated values over time due to incoming datasets with different spatial and temporal variability coverages and dynamic ranges, as well as to algorithm refinements.
